Roofing Panel forming machines introduction Roofing panels are widely used in building steel plate movable houses, workshops. We have seen different profiles of roofing panels and designed & made roll forming machines to make the roofing profiles. the material of the steel plates: colored...
Roofing Panel forming machines introduction
Roofing panels are widely used in building steel plate movable houses, workshops.
We have seen different profiles of roofing panels and designed & made roll forming machines to make the roofing profiles.
the material of the steel plates: colored steel plate, (plain carbon steel)
Plate thickness: 0.3-0.8mm, 0.5-1.5mm
Incoming plate width: 1250mm, 1220, 1200, 1000mm, 914mm, etc.
The work flow of roofing line
Hydraulic, manual uncoiling----entry guide----roll forming (main machine)---- hydraulic shear----support table
Input coils: ID508mm, OD1100mm, 5T
Forming speed: 0-15m/min, 12-25m/min

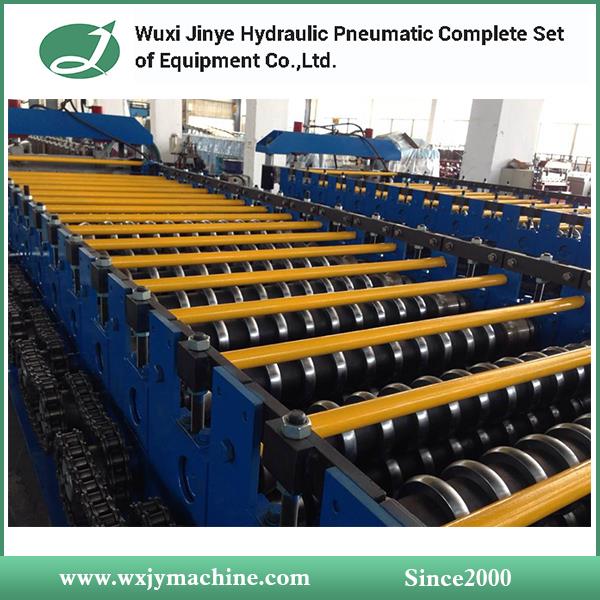

Main machine structure: assembly base of welding plates, wall plates to install forming shafts, AC motor and sprockets & chains drive.
Electric control: AC frequency inverter, PLC + touch screen

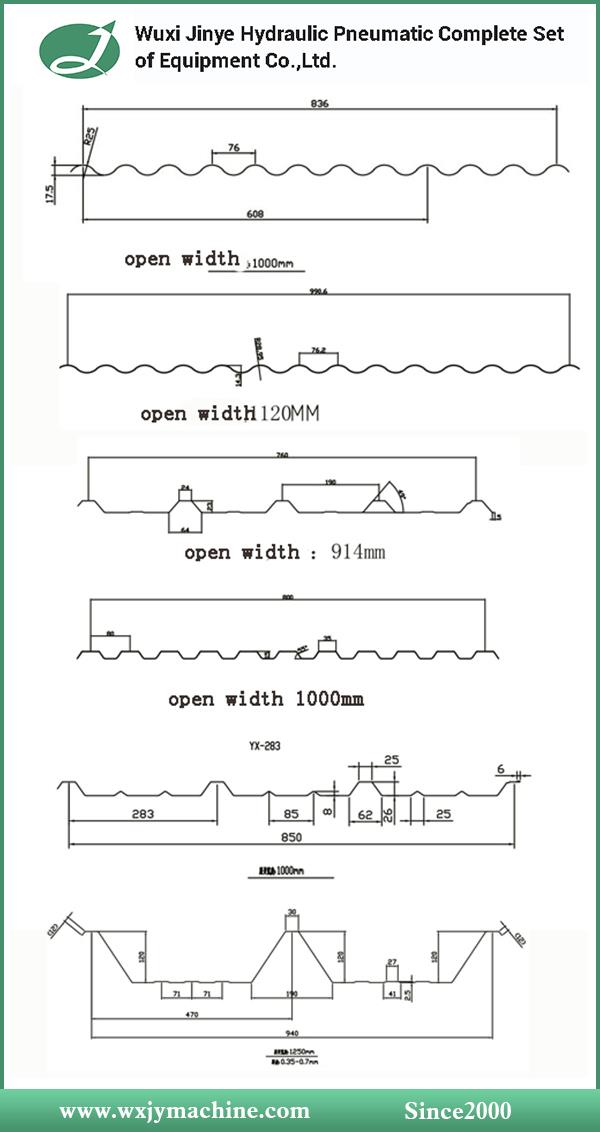

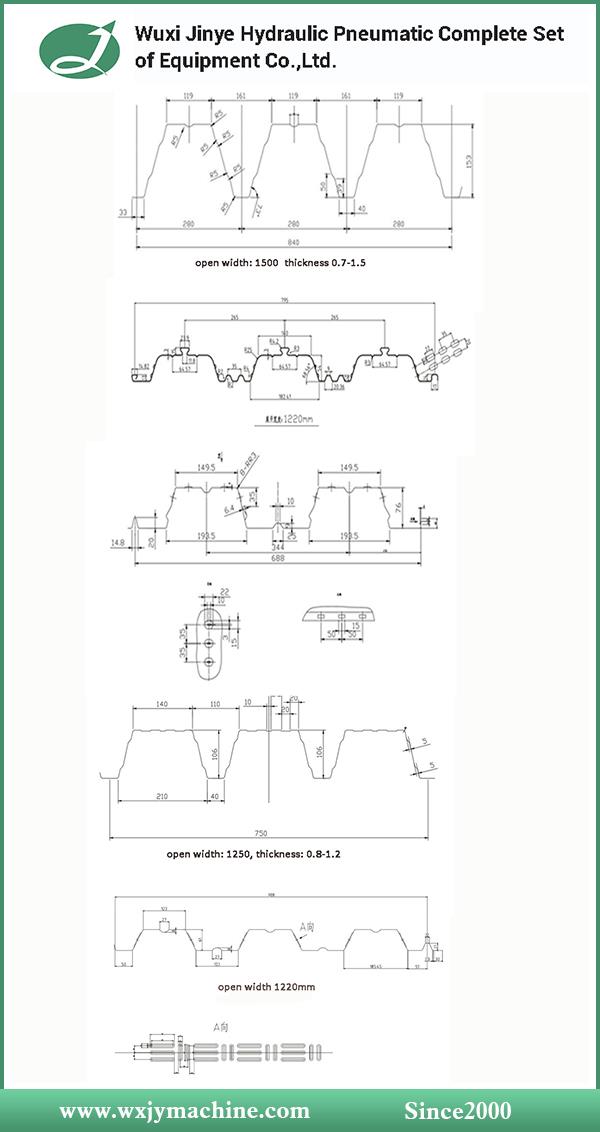

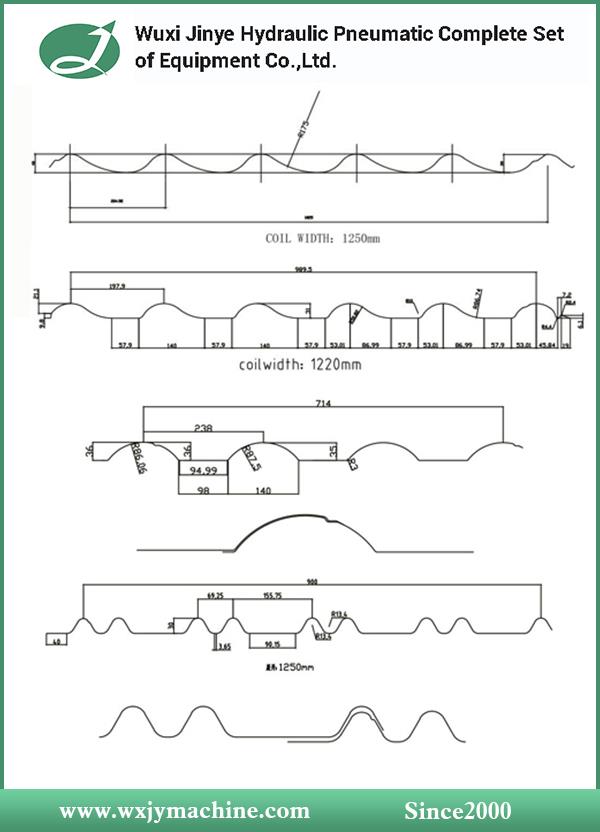

Typical roofing profiles
Delivery time: 40-60days
Check acceptance: the machine won’t be shipped until the machine is tested.
Our main market of the machines: Latin America, Middle East, Africa and East Europe.
Our Advantages
a. Extensive rich experiences:
We are specialized in the steel plate processing machines especially slitting machine & cut to length machines for over 15 years.
b. Delivery time:
The machine design and production need a production cycle.
For small machine, usually 45-60days.
For big machine and production line, usually 90days - 120days.
c. Safe packing:
Anti-rust oil be spread on machines before shipping.
Electric cabinets covered with plastic bag.
Small parts, valves, hoses are packed in wooden case.
d. Best after-sale service:
We provide foundation drawing for civil works, electric wiring drawing, hydraulic/pneumatic schematic drawing, operation & maintenance manual.
We can send technicians to customer’s plants to help install and debug machines.
The customer should get installation conditions ready before our technicians come, buy round trip air tickets, provide food & lodging...
The machine guarantee period is one year after end of commissioning.
FAQ
1.How can I get to your factory?
A: Our city Wuxi is near to Shanghai. You can get off plane at Pudong or Hongqiao airport in Shanghai, then come to Wuxi by fast train for 40minutes. You can take fast train from Beijing to Wuxi, 5 hours. You can come to Wuxi Shuofang Airport by plane. We can pick you up from Wuxi stations, airport, even in Shanghai airport.
2.What is your minimum order quantity, can you send me samples?
A: Our minimum order is 1 set machine, each machine is customerized, thus we don’t have sample to send, however, we can send you catalog, warmly welcome you to visit our company.
3.May I know What payment terms is accepted by your company?
A: So far, (30% advance + 70% balance) 100% T/T before shipment, or 30% deposit by T/T and balance by L/C.
4.Will you arrange the installation of the machine at site?
A: We can send technicians to customer’s plants to help install and debug machines. The customer should get installation conditions ready before our technicians come, buy round trip air tickets, provide food & lodging, and pay each technician 80usd per day. The installation takes about 20-30days.
5.Is your price competitive?
A: The priority is to supply reliable machine, different customers require different levels of machines, we make each machine according to each customer’s specific requirements. Based on confirmed specification, we give the most competitive price.
6.Why choose us?
A: Our machine performances are the most convincing evidences for you to choose us. We achieve the performances by “careful, diligent” efforts day by day. Besides hard efforts, we know well what machines we can supply and what customers are suitable to use our machines. We would like to give our customers the best guidance and suggestions, to let customers know how to choose. To serve customers in this machine field is our mission, we are always here to serve, not far from you.
