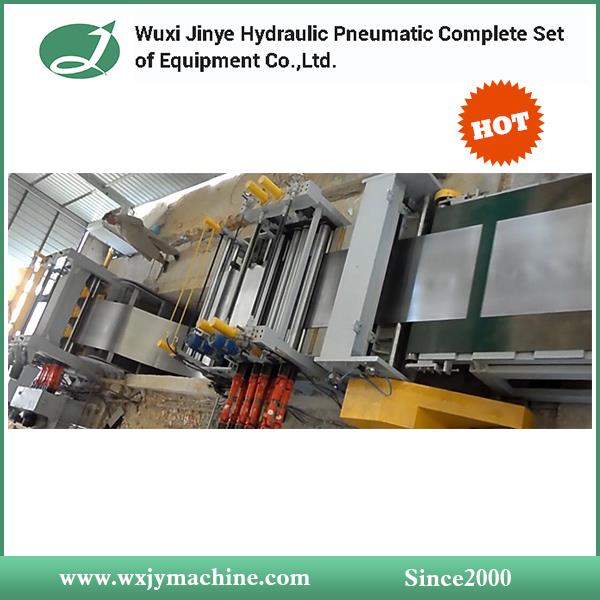

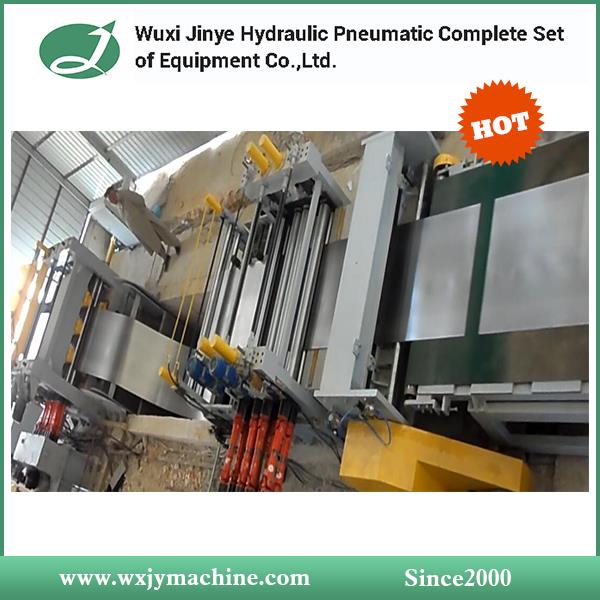

Hot Product: 3 x 1500 High Speed High Precision Cut to Length line introduction
Our JY-3x1500 high speed cut to length line is popular in market, for the steel plates of below 3mm is very widely and largely needed in steel market, such as HRC, CRC, GI, GP, PPGI. When a steel plant needs big production (100T per day) of small thickness steel sheets, we suggest you to have one such high speed cut to length line.
Input raw material of the high speed cutting to length line
Material: HR, CR, galvanized steel, pre-painted galvanized steel coils
max tensile strength 600Mpa, max yield strength 350Mpa
Coil thickness：0.3~3.0mm
Coil width: 400~1600mm
Steel Coils:
Inner diameter of coils: Ф508-610mm
Max diameter of coils: Ф1800mm
Max weight: 18T
Output finished sheets of the high speed cutting to length line
Length: 500mm-4000mm
Precision in length: ≤±0.50mm/m
Precision in diagonal length: ≤±1.5mm/m
Leveling precision: ≤1.5mm/m2
Capacity of the high speed cut to length Line
Max line speed: 80m/min, stop shear.
Shearing speed: 25pcs/min for 2000mm long sheet
Total power of the line: about 90KW.

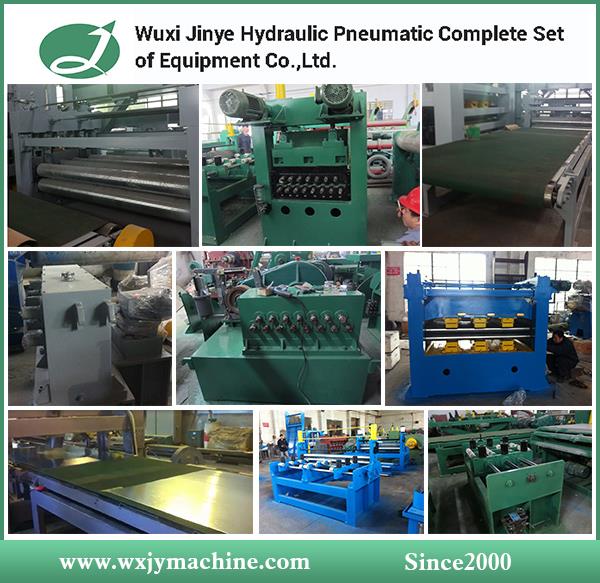

Composition of the high speed cut to length Line
1) Hydraulic coil-loading car
2) Single-mandrel uncoiling
3) Hydraulic Support-plate & Coil-press device
4) 2+17 roller main Leveler with coil-head shoveler
5) Hydraulic strip accumulator
6) Side guide
7) Servo length-fixer
8) Hydraulic stop shearer
9) Conveyor belt
10) Pneumatic sheet piling-up bracket
11) Hydraulic Up-down sheet arraying platform
12) Sheets output car
13) Hydraulic system, Pneumatic system
14) Electric control system
Brands of main parts
Schneider Electric parts, German Lenz servo motor, Omron encoder, Taiwan Vitory hydraulic valves, Taiwan Airtac pneumatic parts, Parker DC driver + Xianfeng DC motor, Yaskawa AC frequency converter + Siemens AC Beide Motor.
FAQ
1.Where is your factory located?
A: Our factory address is: Meicun Industrial Park, New District, Wuxi City, Jiangsu Province, China.
2.Which level of quality are your products?
A: We don’t say our machine quality is the best, our aim is to supply most suitable machine at most reasonable price. “functional, safe, economical” principles keep our company everlasting.
3.About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
A: The warranty period of our machine is 12 months. Within the period, if machine problem is due to quality fault, we will replace parts for free. The moment we know the machine problem from customer, we will firstly tell the customer the fastest available schedule, then bring solution or send out parts as scheduled.
4.Is your price competitive?
A: The priority is to supply reliable machine, different customers require different levels of machines, we make each machine according to each customer’s specific requirements. Based on confirmed specification, we give the most competitive price.
5.How can I trust your company?
A: You can trust our 15 years experiences. You can see running machines in our customers’ plants. Old customers continuously buy machines from us for years.
