Steel Coil Sheet Cutting to Length Line Machine

Steel coil sheet cutting to length line machine introduction

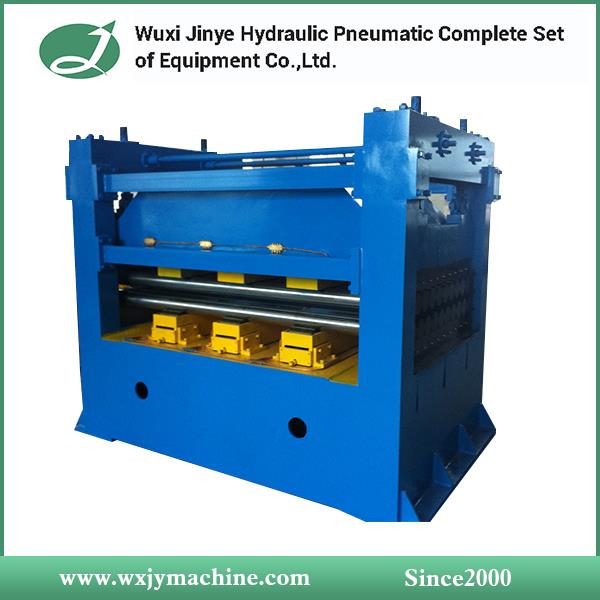

For a cut to length line, leveler is the heart machine, the levelers made by our company can reach high precision leveling request, the tolerance of leveled sheets: ±1.5mm/m2 for thin sheet and ±2mm/m2 for thick sheet.

The leveler functions

-The leveler usually is 4-Hi structure, leveling work rollers with multiple rows of backup rollers

-The support strength between the backup rollers and leveling rollers can be adjusted by wedge device.

-The angle of upper leveling rollers and lower leveling rollers is adjustable according to steel plate thickness and strength.

-The press-down system is mechanical screw rod and worm & worm gear driven by electric motor.

Normal steel sheet cut to length line is characteristic of 30m/min leveling speed measured by encoder, main compositions:

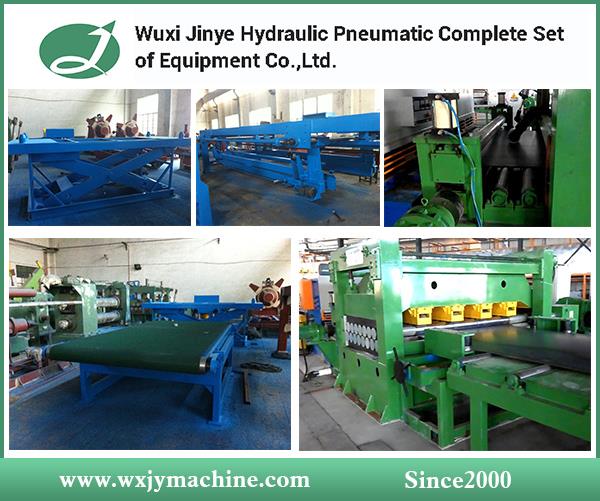

Coil-loading—— uncoiling—— Coil-head-guide, press & shoveling—— Double- roller pinch feeding—— Passover table—— side guide before leveling—— Leveler—— Encoder—— Shearing—— Delivery belt—— stacking system—— Hydraulic control—— Electric control

Main characters of the normal cut to length line

1.The process of uncoiling, coil-head feeding and side guide before leveler is similar to that before slitter of slitting line.

2.Adopt encoding length fixing and mechanical or hydraulic shearing from up to down.

3.The stacking system for galvanized steel sheets, PPGI steel sheets, aluminum sheets should note to protect the sheet surface by receiving each sheet by piling arms.

Parameters

Our service

Ø  Provide the technical design and solutions;

Ø  New plant construction guidance;

Ø  Designing and manufacturing of non-standard equipment;

Ø  Professional technical training and guidance on site according to the contract;

Ø  Supply accessories at any time;

Ø  Tele-technical consulting and services;

Ø  Other special technical service according to client’s requirements.

FAQ

1.Will you arrange the installation of the machine at site?

A: We can send technicians to customer’s plants to help install and debug machines. The customer should get installation conditions ready before our technicians come, buy round trip air tickets, provide food & lodging, and pay each technician 80usd per day. The installation takes about 20-30days.

2.How can I get the after-service?

A: Any problem, you can contact us directly. We will send you spare parts for free if the problems caused by our machine during guarantee period. If problems are due to your wrong operations / maintenance, we also send the spare parts at your account.

3.How can I trust your company?

A: You can trust our 15 years experiences. You can see running machines in our customers’ plants. Old customers continuously buy machines from us for years.

4.Is your price competitive?

A: The priority is to supply reliable machine, different customers require different levels of machines, we make each machine according to each customer’s specific requirements. Based on confirmed specification, we give the most competitive price.

5.Why choose us?

A: Our machine performances are the most convincing evidences for you to choose us. We achieve the performances by “careful, diligent” efforts day by day. Besides hard efforts, we know well what machines we can supply and what customers are suitable to use our machines. We would like to give our customers the best guidance and

suggestions, to let customers know how to choose. To serve customers in this machine field is our mission, we are always here to serve, not far from you.
