Carbon Steel Slitting Line Slitting Production Line

Carbon Steel Slitting Line Slitting Production Line

JY-6x1600 slitting line introduction We design and manufacture the slitting lines according to customer’s requirements, making sure slitting process smooth and efficient. According to market responses, the 6 x 1600 slitting line is very popular. Raw material: steel coils Material of coils: HR/CR...

JY-6x1600 slitting line introduction

We design and manufacture the slitting lines according to customer’s requirements, making sure slitting process smooth and efficient. According to market responses, the 6 x 1600 slitting line is very popular.

Raw material: steel coils

Material of coils: HR/CR carbon steel, galvanized plate, colored steel plate etc.

Strip thickness: 0.6~6.0mm

Strip width: 500~1600mm

Inner diameter of coils: Φ480-800

Outer diameter of coils: Φ2000mm

Max. coil weight: 30000Kg

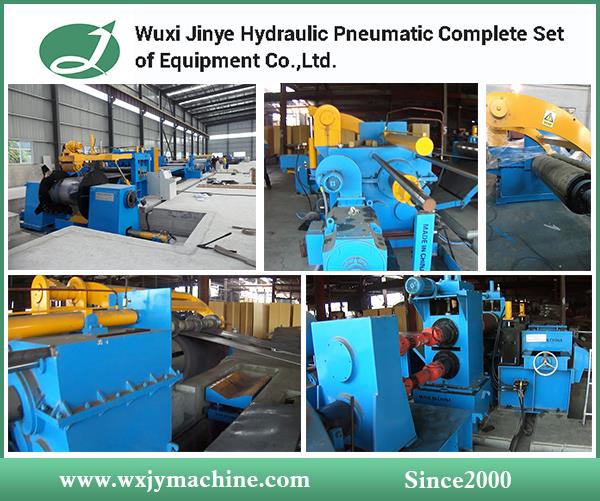

HR slitting line recoiler carbon steel slitting production line.jpg

Machine Parameters

QQ截图20171214145902.jpgSlitting capacity: 0.6-1.0mm, max 25 strips; 5-6mm, max 8 strips; minimum slit strip width: 50mm

QQ截图20171214145902.jpgSlitting speed: max 100m/min

QQ截图20171214145902.jpgSlitting knives: OD380xID250x20mm, 6CrW2Si, HRC56-58

QQ截图20171214145902.jpgRecoiling mandrel: Ф508mm

QQ截图20171214145902.jpgTotal installation power: about 370KW

QQ截图20171214145902.jpgLand occupation: about 25m length, 8m width

QQ截图20171214145902.jpgInput direction: according to customer

QQ截图20171214145902.jpgPower source: according to customer.

Working process

Coil-loading—— Double- mandrel uncoiling—— Coil-head guide, press & shoveling —— Double-roller pinch feeding, five-roller leveler—— End-cutting—— Hole Accumulator(1)—— Strip-aligning—— Disk shearing—— Scrap reeling—— Hole Accumulator(2)—— Pre-separator/ Tensioner/ Length-measuring roller—— Coils press & separator/Recoiling—— Coils-discharging—— Hydraulic control—— Electric control

Our Advantages

a. High quality raw material and standard parts:

We choose high quality materials from reliable supply channel.

We select famous parts like hydraulic valves, pneumatic parts, electric parts, bearings, bolts, etc. We are capable of designing and making the hydraulic system.

b. Strict testing procedures:

We check the parameters of each unit according to order details.

We test each motor, each electric cabinet, each valve.

We measure each machine dimensions and weight for shipment.

c. Best after-sale service:

We provide foundation drawing for civil works, electric wiring drawing, hydraulic/pneumatic schematic drawing, operation & maintenance manual.

We can send technicians to customer’s plants to help install and debug machines.

The customer should get installation conditions ready before our technicians come, buy round trip air tickets, provide food & lodging...

The machine guarantee period is one year after end of commissioning.


FAQ

1.Where is your factory located?

A: Our factory address is: Meicun Industrial Park, New District, Wuxi City, Jiangsu Province, China.

2.How can I get to your factory?

A: Our city Wuxi is near to Shanghai. You can get off plane at Pudong or Hongqiao airport in Shanghai, then come to Wuxi by fast train for 40minutes. You can take fast train from Beijing to Wuxi, 5 hours. You can come to Wuxi Shuofang Airport by plane. We can pick you up from Wuxi stations, airport, even in Shanghai airport.

3.If I will need to stay in your place for a few days, can you book hotel for me?

A: It is my pleasure to book hotel for you.

4.What is your minimum order quantity, can you send me samples?

A: Our minimum order is 1 set machine, each machine is customerized, thus we don’t have sample to send, however, we can send you catalog, warmly welcome you to visit our company.

5.Which level of quality are your products?

A: We don’t say our machine quality is the best, our aim is to supply most suitable machine at most reasonable price. “functional, safe, economical” principles keep our company everlasting.
