Solar Photovoltaic (PV) Support Roll Forming Machine introduction

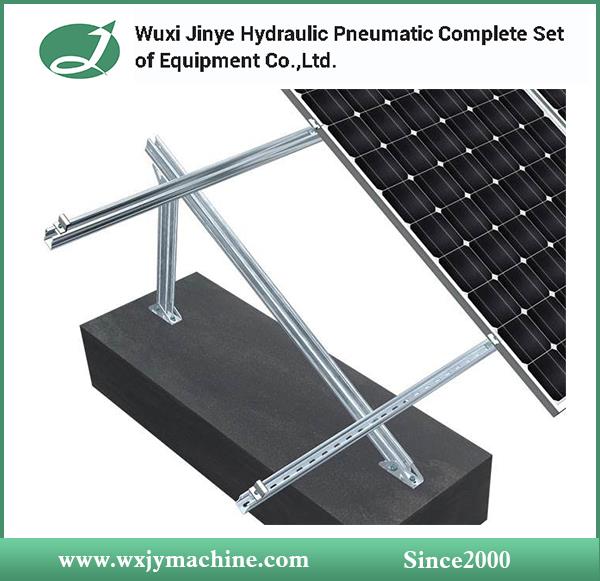

Solar photovoltaic support is classical U channel profile, our U channel roll forming machine is strong and stable.Customers trust us because we make the rolling mill exactly as what they want.We have supplied our Solar bracket forming machine to over 30 countries around the world, such as Indonesia, Malaysia, Philippines, Vietnam, Sri Lanka, Kazakstan, Russia, Saudi Arabia, Kuwait, Iraq, Egypt, Jordan, Sudan, Nigeria, Ghana, South Africa, Algeria, Libya, Venezuela, Colombia, Costa Rica, America, Romania, Serabia, etc.
PV Support U Profile Forming Machine Parameters
Coil strip width: ≤300 mm
Coil strip thickness: 1.2-2.5 mm
Coil strip material: plain carbon steel such as Q235
Number of forming stations: 20 stations, gearbox transmission
Motor of main motor: 45KW AC motor
Track cutting motor: 18.5KW
Forming speed:1-20m/ min
Length of finished U profile: 2000—6000 mm
Total installation power: approx.70KW
Land occupation: 35mL×3.5mW×5mH
Compressed air source: 0.5m3/min, 0.6Mpa
Hydraulic oil: 46#; gear oil: 18# hypoid

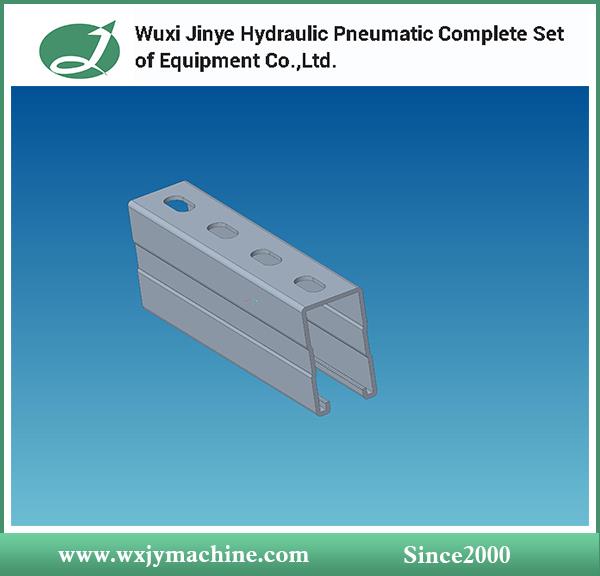

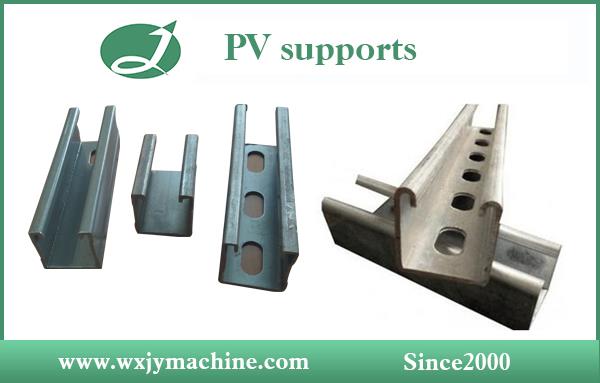

Finished Product

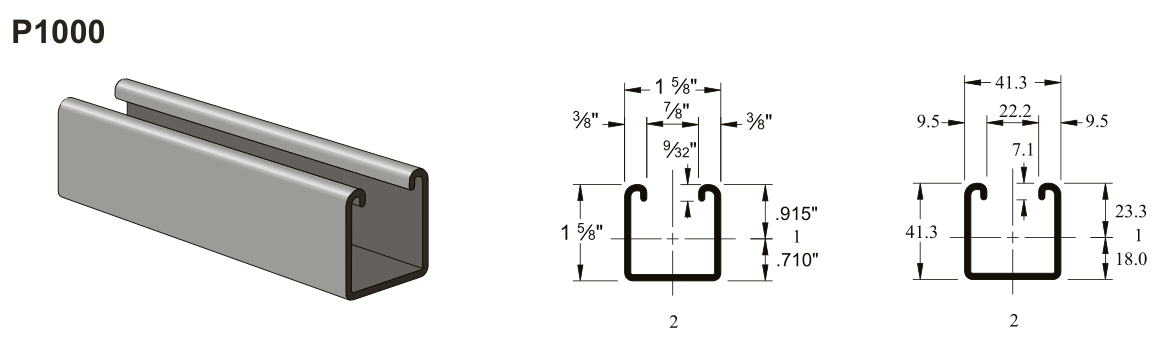

P1000: U2.5-41x41

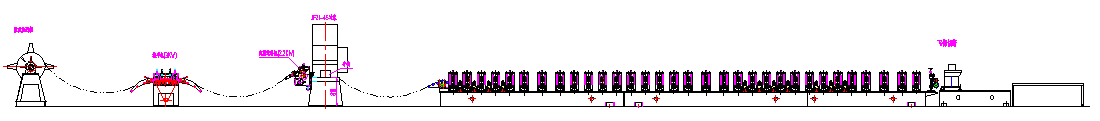

PV Support Forming Line Process
3T Passive uncoiler→ double pinch roller & five-roller leveling→ servo feeding→ punching→ roll forming→ Pneumatic track cutting→ 9m Output table
FAQ
1.Will you arrange the installation of the machine at site?
A: We can send technicians to customer’s plants to help install and debug machines. The customer should get installation conditions ready before our technicians come, buy round trip air tickets, provide food & lodging, and pay each technician 80usd per day. The installation takes about 20-30days.
2.How can I get the after-service?
A: Any problem, you can contact us directly. We will send you spare parts for free if the problems caused by our machine during guarantee period. If problems are due to your wrong operations / maintenance, we also send the spare parts at your account.
3.Is your price competitive?
A: The priority is to supply reliable machine, different customers require different levels of machines, we make each machine according to each customer’s specific requirements. Based on confirmed specification, we give the most competitive price.
