Continuous PU Panel Production Line Machine

Decorative PU Sandwich Panel Production Line The PU composite board production line includes embossing machine, upper plate forming machine and lower plate forming machine, composite board laminating machine, PU injector. We design the whole PU sandwich panel production line according to...

Decorative PU Sandwich Panel Production Line

The PU composite board production line includes embossing machine, upper plate forming machine and lower plate forming machine, composite board laminating machine, PU injector. We design the whole PU sandwich panel production line according to customer’s requirements. The decorative PU sandwich panel production line includes metal coil decoiler embossing machine, lower plate forming machine(fast size change), PU foaming machine and PU injector, foil decoiler, sandwich board laminating machine(dual track lamination machine), cutting to length shear, discharging table.

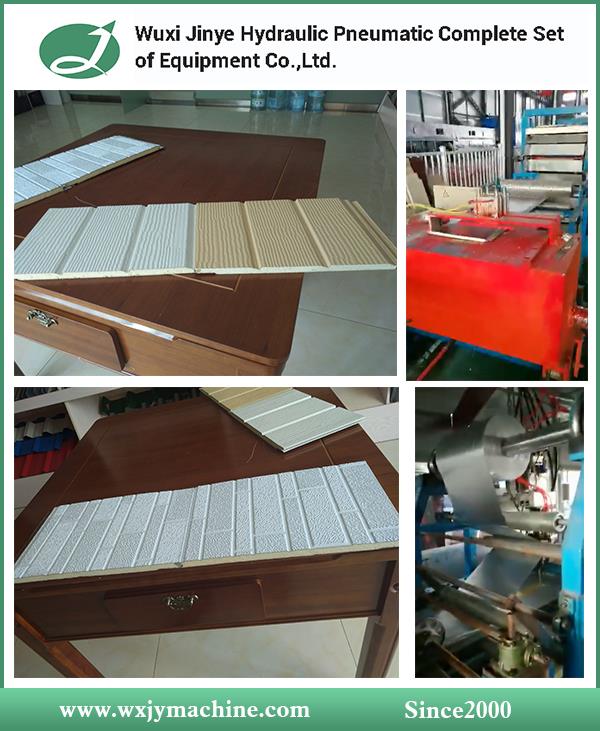

PU combined plate for outer decoration.jpg

Input Materials of the PU Sandwich Board Lamination Line

Material of lower plate: colored coil plate or aluminum coil plate

Material of upper soft foil: non-woven fabrics, kraft paper, aluminum foil

Material of core filling: polyurethane (PU)

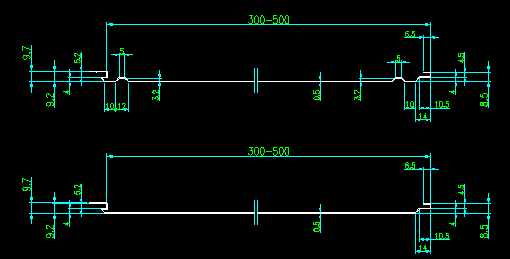

Lower coil plate width and thickness: 200-550mm 0.3-0.6mm

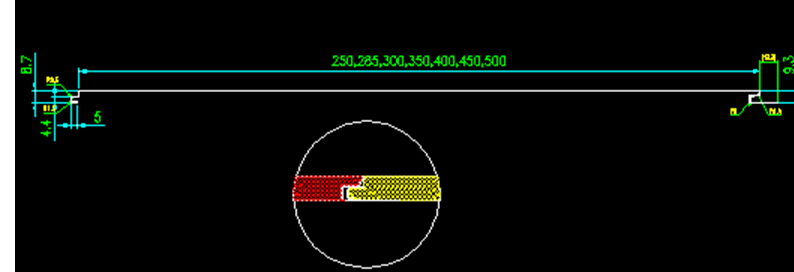

Finished PU Composite Laminated Plates

Thickness of PU composite board: 10-16mm


Parameters of the PU Laminated Board Line

Line speed of the PU laminating line: 2-6m/min

Total installation power: 100KW

Number of roll forming machines: two sets for inner decorative board, one set for exterior decorative board


Core Machine

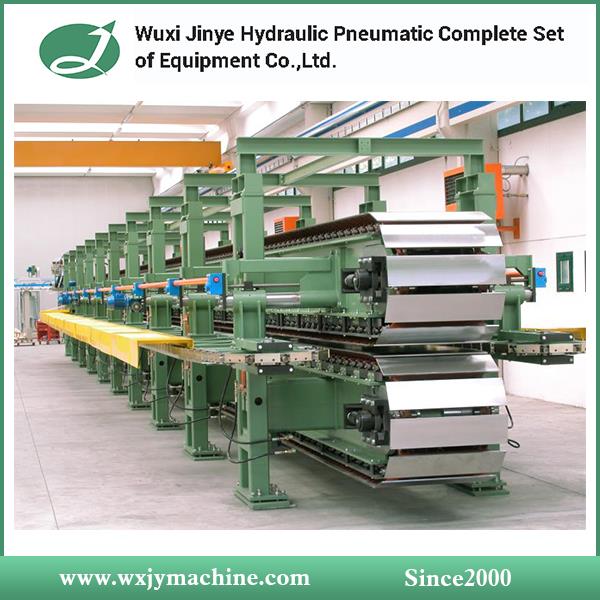

Composite board laminating machine

Parameters

Length

16m

Motor

2.2KW x 2 frequency motor

Transmission

By chains

Press-down of upper track

Hydraulic

Track plate

Aluminum alloy 650 x 125mm

Height of work line

1000mm

Hot wind blower

40KW

Temperature control

20-50°C, infrared thermometer

Our service

Ø  Provide the technical design and solutions;

Ø  New plant construction guidance;

Ø  Designing and manufacturing of non-standard equipment;

Ø  Professional technical training and guidance on site according to the contract;

Ø  Supply accessories at any time;

Ø  Tele-technical consulting and services;

Ø  Other special technical service according to client’s requirements.
