Combined Slitting and Cut to Length Line

Combined Slitting and Cut to Length Line The combined slitting and cut to length line can make small baby coils from big mother coil or flat metal sheets from coil. When a coil processing plant don’t have so much production task and / or enough space for two independent lines, one slitting line...

Combined Slitting and Cut to Length Line

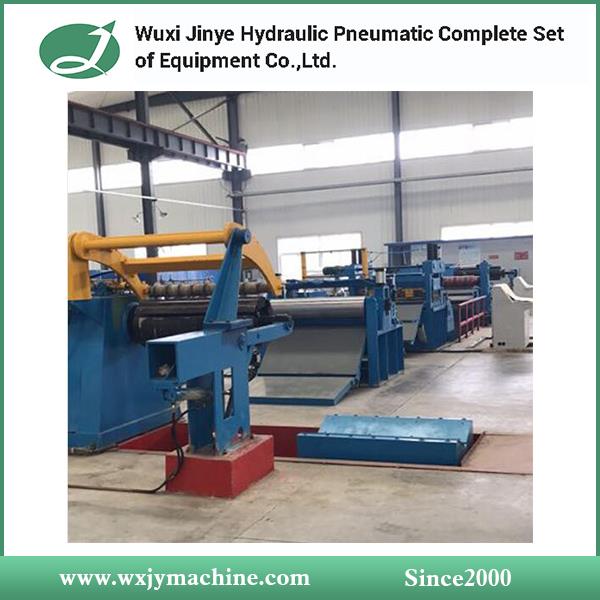

The combined slitting and cut to length line can make small baby coils from big mother coil or flat metal sheets from coil. When a coil processing plant don’t have so much production task and / or enough space for two independent lines, one slitting line and one cut to length line, he can consider to have one combined coil processing line.

-when market wants small slit coils, start the combined line to make coils.

-when market requires flat metal sheets, start the cut to length process.

We can see that the combined slitting cut to length line is flexible, economical and space saving, each year we supply two or three such combined lines to domestic or overseas customers.

Input Mother Coil

HRC, CRC, Galvanized steel coil

Coil thickness: 0.3~3.0mm

Coil width: 500~1250mm

Inner diameter of coils: Ф500-610mm

Max diameter of coils: Ф1600mm

Max weight: 15T

Finished Product

Flat Sheets

Length: 500mm-4000mm

Precision in length: ≤±0.50mm/m

Precision in diagonal length: ≤±1.0mm/m

Leveling precision: ≤1.5mm/m2

Small Slit Coils

20-1250mm width, 508mm coil ID

Precision in slit coil width: +/-0.15mm

Recoiled coil hump: Max 0.5m

Camber on slit strip edge: ±0.10mm/m

Burr tolerance: Less than 5% of strip thickness

Surface quality of slit steel strips: Without flaws like edge fold, angle fold, scratch, oil dirt, roller print, crease

Main Machine Parameters of the Combined Slitting Line Cut to Length Line

Slitting speed: 0-80m/min

Slitting capacity: 0.3-1.0mm, max 20cuts; 1.0-2.0mm, max 15cuts; 2-3mm, max 10cuts.

Motor of slitter: 75KW DC

Motor of recoiled: 90KW DC

Leveling speed: 0-60m/min, 20pcs per minute for 1.8m sheets.

Leveling machine: 2+15 leveler, Ф80mm leveling roller, 55KW DC motor

Composition of the Combined Line

1) Hydraulic coil-loading car

2) Single Mandrel uncoiler with central aligning

3) Coil-head press guide device

4) Double pinch rolls & 15-roller Leveler with coil-head shoveler

5) First pit accumulator

6) Side guide before slitter

7) Slitter

8) Edge scrap reeler

9) econd pit accumulator

10) Pre-separator & Tensioner

11) Recoiled with Separator press bracket

12) Side guide before length fixing

13) Pair of double rolls Servo length fixer

14) Pneumatic stop shearer

15) Conveyor belt

16) Pneumatic sheet piling-up bracket

17) Hydraulic Up-down sheet arraying platform

18) Sheets output car

19) Hydraulic system, Pneumatic system

20) Electric control system

Our Service

Ø Provide the technical design and solutions;

Ø New plant construction guidance;

Ø Designing and manufacturing of non-standard equipment;

Ø Professional technical training and guidance on site according to the contract;

Ø Supply accessories at any time;

Ø Tele-technical consulting and services;

Ø Other special technical service according to client’s requirements.
