CRC, GI, PPGI Steel Coil Slitting Line Machine

CRC, GI, PPGI Steel Coil Slitting Line Machine

CRC, GI, PPGI steel coil slitting line machine introduction CRC, GI and PPGI steel coils are usually slit on one slitting line machine, the slitting thickness range varies 0.2-1mm, 0.2-2mm, 0.3-3mm, 0.4-4mm, 0.6-6mm, 1-8mm, 2-10mm, 3-12mm. CRC is cold rolled steel coil, GI is galvanized steel...

CRC, GI, PPGI steel coil slitting line machine introduction

CRC, GI and PPGI steel coils are usually slit on one slitting line machine, the slitting thickness range varies 0.2-1mm, 0.2-2mm, 0.3-3mm, 0.4-4mm, 0.6-6mm, 1-8mm, 2-10mm, 3-12mm. CRC is cold rolled steel coil, GI is galvanized steel coil, PPGI is pre-painted galvanized steel coil.

The slitting machine we design for CRC, GI and PPGI steel coil slitting have some special characteristics

1.The transfer rollers, snubber arm roller, drive pinch roller are rubber coated, to avoid steel strip surface from scratching.

2.Single mandrel or steps style double mandrel uncoiler to protect coil edge not being damaged.

3.Recoiler mandrel can be seamless style to protect the inner circles of wound coil.

4.Slitting accessories must be high precision to ensure high quality slitting.

5.Recoiling strips separation is very neat and tight, convenient for packing.

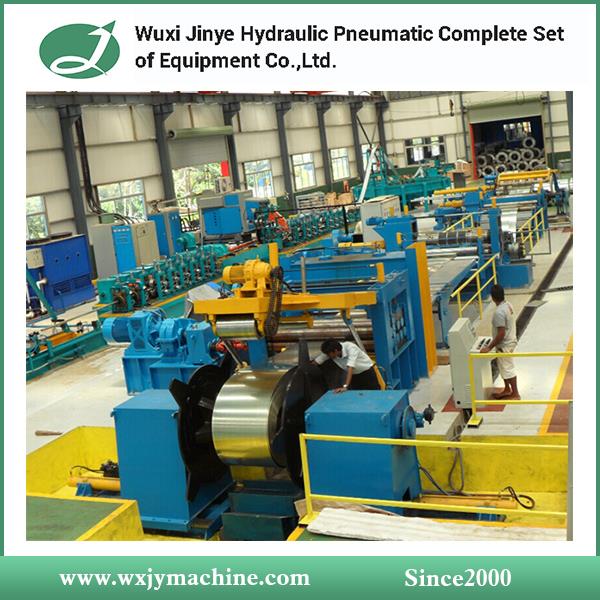

sheet metal slitting machine.jpg

Supply scope of the steel coil slitting line machine

One coil loading car, one uncoiler, one snubber arm and one peeler plate, one pinch feeder & five roller leveler, one transmission table(or pit accumulator), one side guide, slitter(double slitter heads are optional), pit accumulator, one tensioner with pre-separator, one recoiler with press separator, one coil discharging car.

CRC, GI, PPGI steel coil slitting parameters

Model

Steel coil thickness range

Steel coil width range

Slitting speed (maximum)

Installation power

JY-1x1000

0.15-1mm

300-1000mm

30m/min-120m/min

70-150KW

JY-2x1250

0.2-2mm

300-1250mm

100m/min

180KW

JY-3x1600

0.3-3mm

500-1600mm

100m/min

210KW

JY-6x1600

0.6-6mm

500-1600mm

80m/min

300KW

JY-8x1600

1-8mm

1000-1800mm

80m/min

370KW

JY-12x2000

2-12mm

1000-2000mm

60m/min

450KW

Performance

We supply the CRC, GI, PPGI slitting lines to:

Sri Lanka: 6x 1600 100m/min slitting line, two sets.

El Salvador: 3 X 1250 80m/min slitting line, one set.

Indonesia: 6 x 1600 120m/min dual shift slitting line, two sets.

Our service

Ø  Provide the technical design and solutions;

Ø  New plant construction guidance;

Ø  Designing and manufacturing of non-standard equipment;

Ø  Professional technical training and guidance on site according to the contract;

Ø  Supply accessories at any time;

Ø  Tele-technical consulting and services;

Ø  Other special technical service according to client’s requirements.


FAQ

1.Where is your factory located?

A: Our factory address is: Meicun Industrial Park, New District, Wuxi City, Jiangsu Province, China.

2.If I will need to stay in your place for a few days, can you book hotel for me?

A: It is my pleasure to book hotel for you.

3.Which level of quality are your products?

A: We don’t say our machine quality is the best, our aim is to supply most suitable machine at most reasonable price. “functional, safe, economical” principles keep our company everlasting.

4.As the shipping period will take long time, how can you make sure the machine won’t be broken?

A: Our machine is film wrapped, to make sure the machine can be delivered to our customer in safe conditions, we fix the machine in the container by steel wires / ropes.
