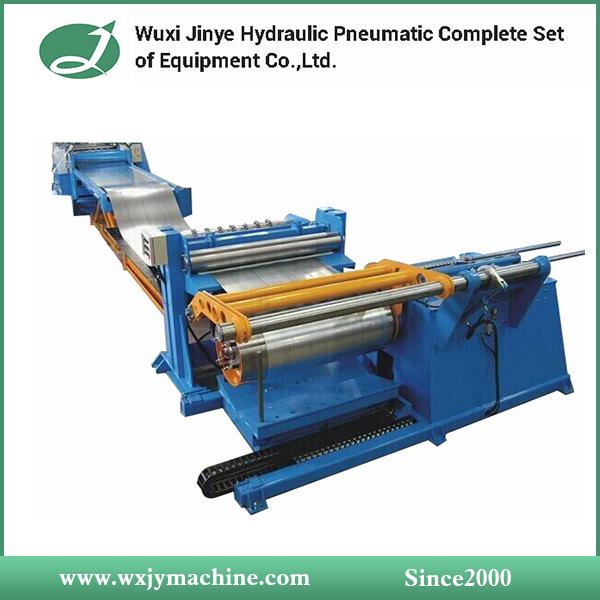

Simple Structure Slitting Machine for Thin Sheet

Simple Structure Slitting machine for thin sheet introduction We have successfully supplied compact simple slitter for thin sheet to domestic and overseas market, the compact slitter is specially designed for thin sheet slitting which thickness is no more than 1.5mm. Many steel factories don’t...

Simple Structure Slitting machine for thin sheet introduction

We have successfully supplied compact simple slitter for thin sheet to domestic and overseas market, the compact slitter is specially designed for thin sheet slitting which thickness is no more than 1.5mm.

Many steel factories don’t need a lot of slit coils, they buy slitting machine only for making their own steel plate products such as roofing sheets, electric appliances, keels & studs, etc.  Therefore, a compact simple slitter is their best choice, on one side, economical in machine investment cost, on the other side, the production is very enough for self use.

Special characteristics of the compact slitter

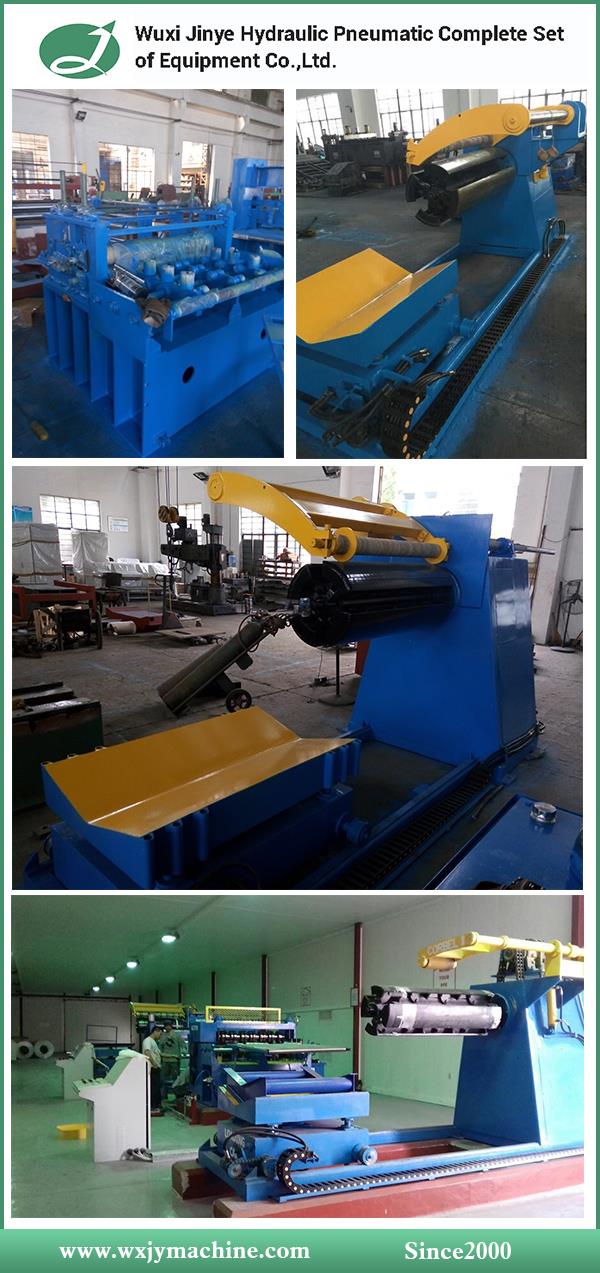

1.The coming coil weight is not heavy, within 6T, so suspending cantilever mandrel uncoiler is strong and convenient.

2.The over snubber arm is installed on the uncoiler, easily open the coil head.

3.The coil thickness is less than 1.5mm, strip head is very light, worker can manually lift the head and enter the pinch rolls.

4.The slitting knives are fixed on slitting shafts by screw, without slitting spacers.

5.Cantileveler mandrel recoiler with overarm separator.

6.Main motors are AC frequency motor controlled by frequency converter.

7.Disc cutter: φ260×φ160×45mm

8.Material: 6CrW2Si

side guide slitter head.jpg

Simple Slitter Parameters

Model

Steel coil thickness range

Steel coil width range

Slitting speed (maximum)

Installation power

JY-1x1000

0.15-1mm

300-1000mm

40m/min

60KW

JY-1.5x1250

0.2-1.5mm

300-1250mm

40m/min

80KW

Our performance

1.2 x 1250 slitting line in Saudi Arabia

1.0 x 1000 slitter for Canada

Our Advantages

a. Delivery time:

The machine design and production need a production cycle.

For small machine, usually 45-60days.

For big machine and production line, usually 90days - 120days.

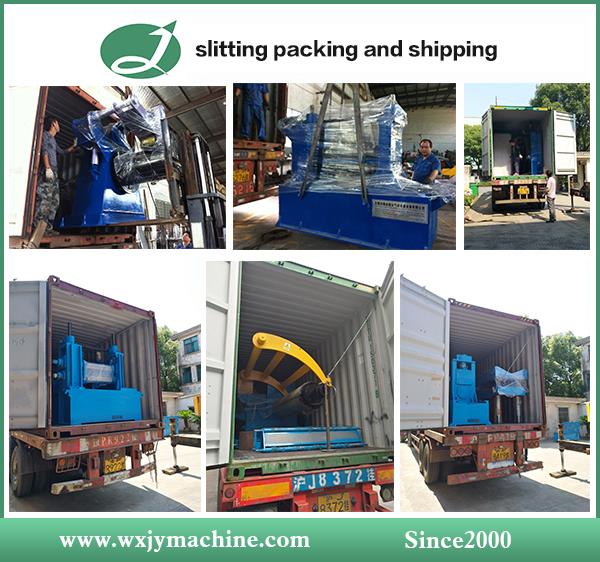

b. Safe packing:

Anti-rust oil be spread on machines before shipping.

Electric cabinets covered with plastic bag.

Small parts, valves, hoses are packed in wooden case.

c. Best after-sale service:

We provide foundation drawing for civil works, electric wiring drawing, hydraulic/pneumatic schematic drawing, operation & maintenance manual.

We can send technicians to customer’s plants to help install and debug machines.

The customer should get installation conditions ready before our technicians come, buy round trip air tickets, provide food & lodging...

The machine guarantee period is one year after end of commissioning.


FAQ

1.How can I get to your factory?

A: Our city Wuxi is near to Shanghai. You can get off plane at Pudong or Hongqiao airport in Shanghai, then come to Wuxi by fast train for 40minutes. You can take fast train from Beijing to Wuxi, 5 hours. You can come to Wuxi Shuofang Airport by plane. We can pick you up from Wuxi stations, airport, even in Shanghai airport.

2.Which level of quality are your products?

A: We don’t say our machine quality is the best, our aim is to supply most suitable machine at most reasonable price. “functional, safe, economical” principles keep our company everlasting.

3.May I know What payment terms is accepted by your company?

A: So far, (30% advance + 70% balance) 100% T/T before shipment, or 30% deposit by T/T and balance by L/C.

4.How can I get the after-service?

A: Any problem, you can contact us directly. We will send you spare parts for free if the problems caused by our machine during guarantee period. If problems are due to your wrong operations / maintenance, we also send the spare parts at your account.
