Steel plate embossing machine introduction We have rich experiences in the Steel plate embossing machine,We have supplied our embossing machine to over 30 countries around the world, such as Indonesia, Malaysia, Philippines, Vietnam, Sri Lanka, Kazakstan, Russia, Saudi Arabia, Kuwait, Iraq,...

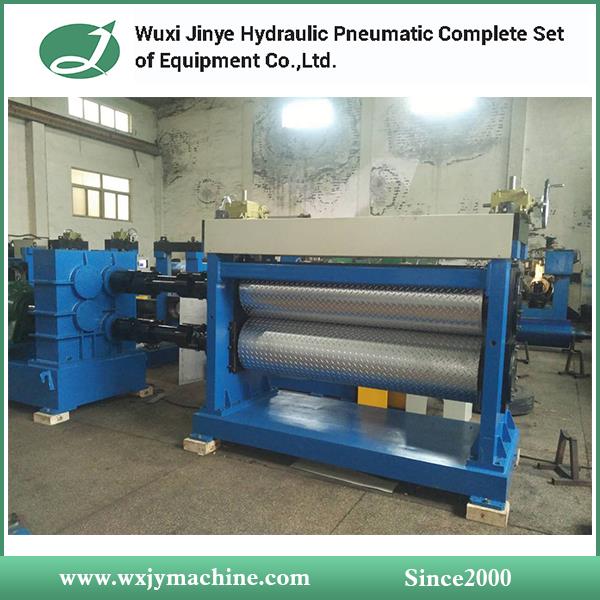

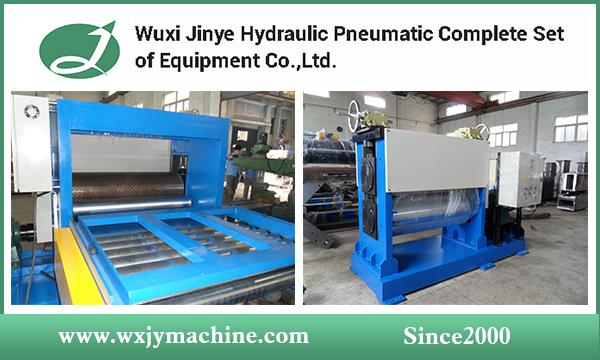

Steel plate embossing machine introduction
We have rich experiences in the Steel plate embossing machine,We have supplied our embossing machine to over 30 countries around the world, such as Indonesia, Malaysia, Philippines, Vietnam, Sri Lanka, Kazakstan, Russia, Saudi Arabia, Kuwait, Iraq, Egypt, Jordan, Sudan, Nigeria, Ghana, South Africa, Algeria, Libya, Venezuela, Colombia, Costa Rica, America, Romania, Serabia, etc.
Checker plate machine application
Steel plate embossing machines is mainly for producing anti-skidding checkered steel plates, aluminum plates or foils ,and can be also used for leather, clothing, sponge embossing.
the pattern can be based on customer's requirement. The metal plate thickness varies according to application.
Recently, the chequer plate is widely used in architectural decoration, air-conditioning, packaging, electrical, electric products and other fileds.
We can provide the steel plate embossing machine not only for single plate but also for metal coil (uncoiler-embosser-leveller-cutter-collection table/ uncoiler-embosser-recoiler)
Main specification
1) Be suitable of 1-3mm thickness and width based on customer
2)Pattern checkered by laser engraving ,and double-layer pattern
3) Driver:15kw motor, cycloidal speed reducer
4) Speed:0-11m/min
5) Embossing roller:￠440mm,60CrMnMo alloy steel solid forging,hardness:63-64 HRC
6) Press-down mode: screw rob driven by worm-reducing motor
7) Leveller:￠100mmx9 rollers,5.5kw motor with speed reducer
8)Including input &output platform and safe cover
9)Weight: about 10

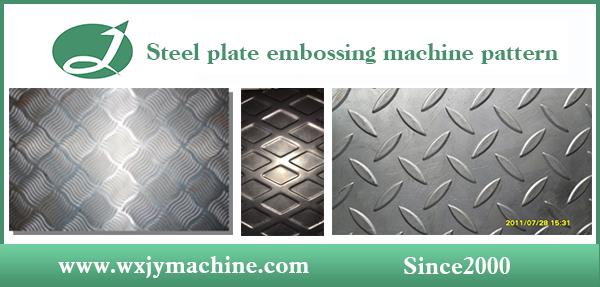

Steel plate embossing machine Pattern
Our Advantages
a. Extensive rich experiences:
We are specialized in the steel plate processing machines especially slitting machine & cut to length machines for over 15 years.
b. High quality raw material and standard parts:
We choose high quality materials from reliable supply channel.
We select famous parts like hydraulic valves, pneumatic parts, electric parts, bearings, bolts, etc. We are capable of designing and making the hydraulic system.
c. Strict testing procedures:
We check the parameters of each unit according to order details.
We test each motor, each electric cabinet, each valve.
We measure each machine dimensions and weight for shipment.
Our service
Ø Provide the technical design and solutions;
Ø New plant construction guidance;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client’s requirements.
FAQ
1.Where is your factory located?
A: Our factory address is: Meicun Industrial Park, New District, Wuxi City, Jiangsu Province, China.
2.How can I get to your factory?
A: Our city Wuxi is near to Shanghai. You can get off plane at Pudong or Hongqiao airport in Shanghai, then come to Wuxi by fast train for 40minutes. You can take fast train from Beijing to Wuxi, 5 hours. You can come to Wuxi Shuofang Airport by plane. We can pick you up from Wuxi stations, airport, even in Shanghai airport.
3.If I will need to stay in your place for a few days, can you book hotel for me?
A: It is my pleasure to book hotel for you.
4.What is your minimum order quantity, can you send me samples?
A: Our minimum order is 1 set machine, each machine is customerized, thus we don’t have sample to send, however, we can send you catalog, warmly welcome you to visit our company.
5.Which level of quality are your products?
A: We don’t say our machine quality is the best, our aim is to supply most suitable machine at most reasonable price. “functional, safe, economical” principles keep our company everlasting.
6.About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
A: The warranty period of our machine is 12 months. Within the period, if machine problem is due to quality fault, we will replace parts for free. The moment we know the machine problem from customer, we will firstly tell the customer the fastest available schedule, then bring solution or send out parts as scheduled.
