Automatic Middle Gauge Slitting Machine Line

Automatic Middle gauge slitting line introduction

Middle plate thickness ranges from 4-8mm, plate width is 1500mm, 1600mm, 1800mm, 2000mm. Steel coil weight 25T, 30T. Steel plate companies require the middle plate slitting line : machine frame is strong, working parts is very precise, slitting speed is high. We have rich experiences in designing and making the middle plate slitting machines, for we have made over 30 middle sheet slitting lines.

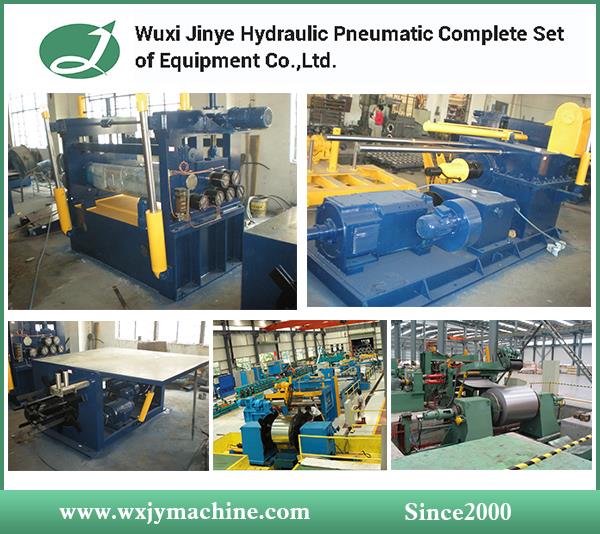

Advantages of our middle sheet slitting machine

1.Decoiler: Double mandrels structure, clamp coil tight in the centerline. The double mandrels can be round cone shape or three steps cone shape. The central aligning is driven by hydraulic cylinder on each uncoiler base.

2.Slitter: Strong double spindles, circle annular slitting knives on double spindles with lock keys. Ф250mm, Ф260mm, Ф280mm spindle diameter, material: 40Cr, forging and tempering, medium-frequency quenching, hard chrome plating, fine polishing.

3.Tensioner: Woolen felt or five roller style tensioning according to steel strip material strength, reliable and stable.

4.Recoiler: DC motor & gearbox reducing to drive recoiling mandrel, with overarm separator or portal press separator.

5.Electric control system: American Parker DC speed controller, Mitsubishi PLC+ touch screen.

6.Either one or two pit accumulator to make sure synchronization between main motors, so smooth and high speed slitting can be reached.

Parameters of our middle sheet slitting machine

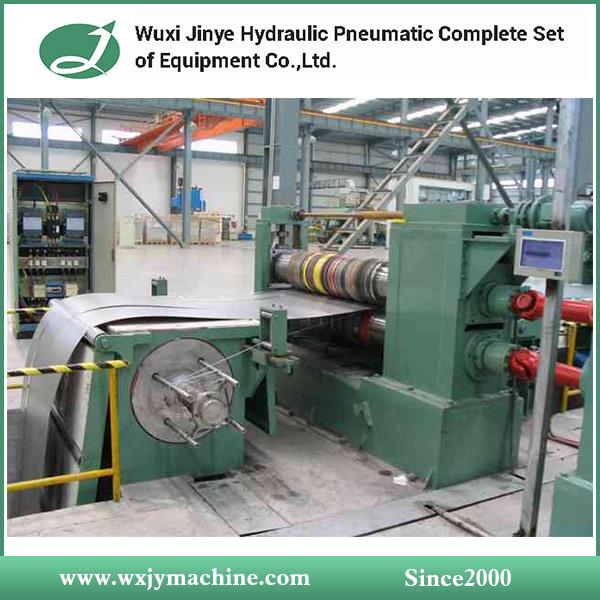

Our performances of middle slitting machines

JY-6x1600 slitting line, in Jordan, Sudan, Saudi Arabia

JY-8x2100 slitting line in Algeria

Our Advantages

a. Strict testing procedures:

We check the parameters of each unit according to order details.

We test each motor, each electric cabinet, each valve.

We measure each machine dimensions and weight for shipment.

b. Delivery time:

The machine design and production need a production cycle.

For small machine, usually 45-60days.

For big machine and production line, usually 90days - 120days.

c. Safe packing:

Anti-rust oil be spread on machines before shipping.

Electric cabinets covered with plastic bag.

Small parts, valves, hoses are packed in wooden case.

d. Best after-sale service:

We provide foundation drawing for civil works, electric wiring drawing, hydraulic/pneumatic schematic drawing, operation & maintenance manual.

We can send technicians to customer’s plants to help install and debug machines.

The customer should get installation conditions ready before our technicians come, buy round trip air tickets, provide food & lodging...

The machine guarantee period is one year after end of commissioning.

FAQ

1.Which level of quality are your products?

A: We don’t say our machine quality is the best, our aim is to supply most suitable machine at most reasonable price. “functional, safe, economical” principles keep our company everlasting.

2.How can I get the after-service?

A: Any problem, you can contact us directly. We will send you spare parts for free if the problems caused by our machine during guarantee period. If problems are due to your wrong operations / maintenance, we also send the spare parts at your account.

3.Are you a manufacturer, trading company or a third party?

A: We are a manufacturer established in 2000.

4.How can I get to your factory?

A: Our city Wuxi is near to Shanghai. You can get off plane at Pudong or Hongqiao airport in Shanghai, then come to Wuxi by fast train for 40minutes. You can take fast train from Beijing to Wuxi, 5 hours. You can come to Wuxi Shuofang Airport by plane. We can pick you up from Wuxi stations, airport, even in Shanghai airport.
