Tandem continuous cold rolling mill introduction
Reversible cold rolling mill can get different finished thickness by to-and-fro multiple rolling process, it is flexible and precise. When steel plants want to produce huge production of cold rolled steel plates, reversible rolling mill multiple to-and-fro rolling can not satisfy, tandem continuous one way cold rolling mill is suitable for the situation.
Tandem continuous cold rolling mill make cold rolled coils (CRC) on one direction rolling process by passing through multiple rolling mill heads（2 heads, 3 heads, 4 heads, 5 heads, 6 heads). We design the tandem cold rolling mill line according to client’s requirements on metal material, input thickness, output thickness, annual production, and properties of finished plate.
Ø185×700/Ø600×650 Three Heads Tandem Cold rolling Mill, 210m/min
Work process
Coil storing, coil loading, uncoiling, pinch-feeding & straightening, shear and welding, accumulator, pinch feeding, three roller tension generating, F1 rolling mill, F2 rolling mill, F3 rolling mill, oil removing, thickness measuring, strip direction turning, recoiling, coil discharging.
Thickness reducing degree: max 70%
E. g., Input 3.0mm, 30% off, 2.1mm, 33%,1.4, 35%, 0.9
Raw Material: plain carbon steel coils
Steel coil thickness: 1.5～3.0mm
Steel coil width: 400-600 mm
Max coil weight: 9T
Finished steel coils
Steel coil thickness: 0.5～1.0mm
Steel coil width: 400-600 mm
Coil inner diameter: 508mm
Machine parameters of three mills
Max rolling force: 5500KN
Recoiling tension: 55KN
Rolling speed at exit of third mill: max 210m/min
Total installation power: 2200KW
Hydraulic pressure of low voltage station: 10Mpa
Hydraulic pressure of roller bending station: 15Mpa
Mechanical press-down for each mill: 18.5KW x 2 motor, two grades worm reducing gearboxes and B200×10 screw rods.

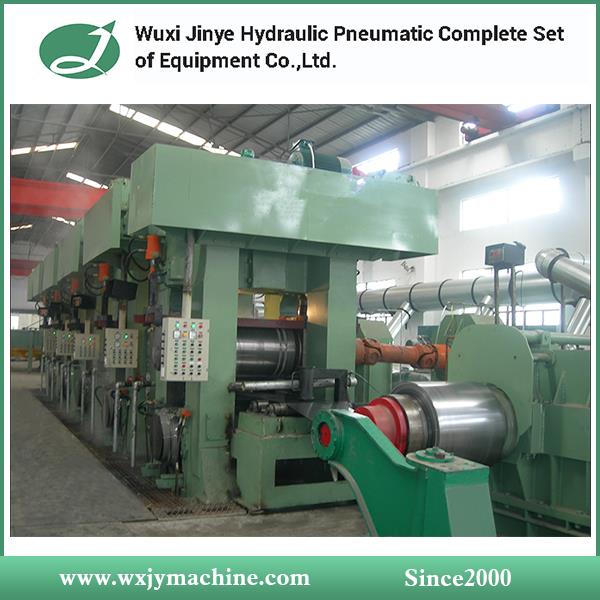

Φ230/φ630×750 Four-Stands Tandem Mill
Parameters of Four Stands Tandem mill
Input Material: Carbon Steel (Q195,Q235,08AL) coils
Incoming Raw Material Size:≤2.0~4.0×630mm
Output Product Size:≥0.6~1.2×630mm
ID/OD of Coil: φ508φ1800mm
Max. Coil Weight: W=12T
Max. Rolling Force: P≤700T
Max. Rolling Speed: V≤280m/min
Coiler Tension: T≤70KN
Composition of Four-Stands Tandem Mill:
Hydraulic Loading car
Hydraulic expansion Uncoiler
Double pinch rolls & Five-roll straightening machine
Cutting and welding table
Horizontal Spiral Accumulator
input processing platform
Main Mill( F1, F2, F3, F4 tandem rolling mill, hydraulic AGC press-down)
output processing platform
Hydraulic expansion coiler
Hydraulic Unloading car
Meters(three tension meters, four sets thickness gauge)
Electric control( central controlling room, Suspending operator panels beside the mill)
Liquid station(hydraulic station, thin oil station, emusified liquid tank)
Ground anchor bolts
Our service
Ø Provide the technical design and solutions;
Ø New plant construction guidance;
Ø Designing and manufacturing of non-standard equipment;
Ø Professional technical training and guidance on site according to the contract;
Ø Supply accessories at any time;
Ø Tele-technical consulting and services;
Ø Other special technical service according to client’s requirements.
FAQ
1.Where is your factory located?
A: Our factory address is: Meicun Industrial Park, New District, Wuxi City, Jiangsu Province, China.
2.May I know What payment terms is accepted by your company?
A: So far, (30% advance + 70% balance) 100% T/T before shipment, or 30% deposit by T/T and balance by L/C.
3.Will you arrange the installation of the machine at site?
A: We can send technicians to customer’s plants to help install and debug machines. The customer should get installation conditions ready before our technicians come, buy round trip air tickets, provide food & lodging, and pay each technician 80usd per day. The installation takes about 20-30days.
4.How can I trust your company?
A: You can trust our 15 years experiences. You can see running machines in our customers’ plants. Old customers continuously buy machines from us for years.
